IR Laser + IR illuminator.
Focusable & Adjustable.
Compatible with All Night Vision Goggles.
Design for Airsoft use!

SKU: PEQ2A-IRILU-PCB

Category: Aiming Laser

Tag: peq-2a

Description

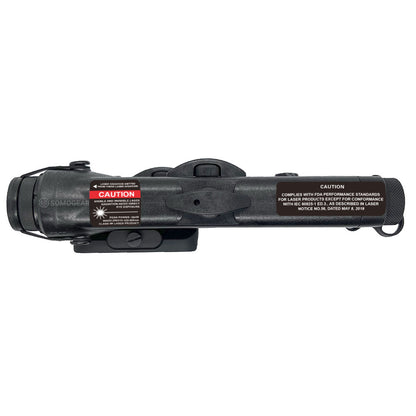

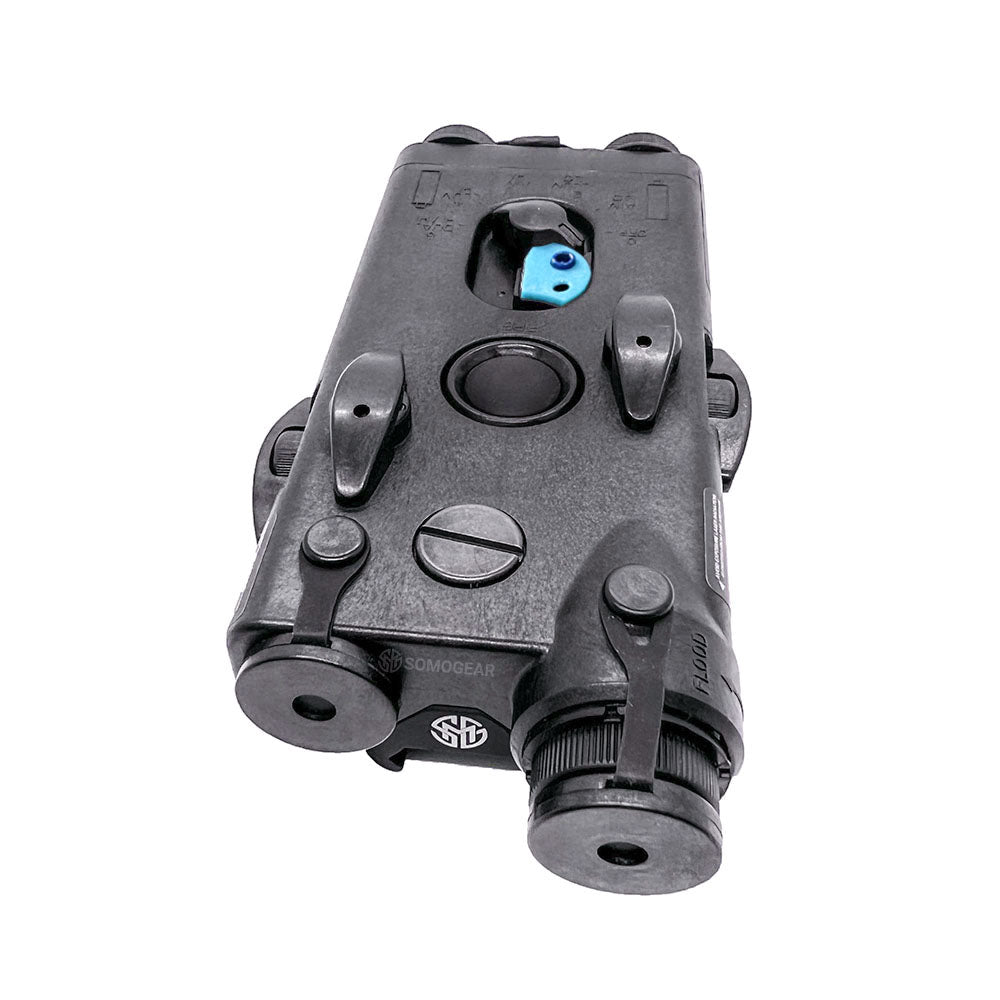

SomoGear PEQ-2A Retro Build IR Laser Illuminator

• Brand: SOMOGEAR
• Fits for picatinny rail MIL-STD-1913
• Durable polyamide material + Floating Fiber
• Compatible with prototype crane mil-spec plug
• Prototype hand feeling mode selector
• Zeroable aiming laser (When mounting on the rail, don’t over torquing the mount screw, or else it may losing zero)
• Prototype hand feeling mode selector
• Focusable & adjustable IR illuminator
• Rotating IR illuminator Focus Ring 288° degrees from spot to flood
• IR illuminator max flood range: ∠5.73° (at 30m distance, the max flood beam diameter ≈ Ø3.0 meter)
• 5 minutes power off automatically, protect batteries not drain so fast if forget to turn off (as infrared version invisible by naked eye)
• Compatible all generation Night Vision Goggles
• All the lens cover just an opaque cover, without diffuser function.
• 100% Brand New, Design for Airsoft use!
• Ship from HongKong
• *The product cannot be disassembled, and it will destroy itself when disassembled*

TECHNICAL SPECIFICATIONS
Dimensions: 7.5″ x 2.6″ x 1.1″
Weight: 7.4 oz (209g).
Battery: 2*1.5V AA Batteries (not include)
Battery Life: >6 Hours (under all modes)
Working Temperature: -10°C to +45°C

IR Aim Laser
Output Power Low: ≤0.1mW
Output Power High: ≤1mW

IR Illuminator
Output Power Low: ≤1mW
Output Power High: ≤4.9mW

MODE SELECTOR FUNCTIONS:
